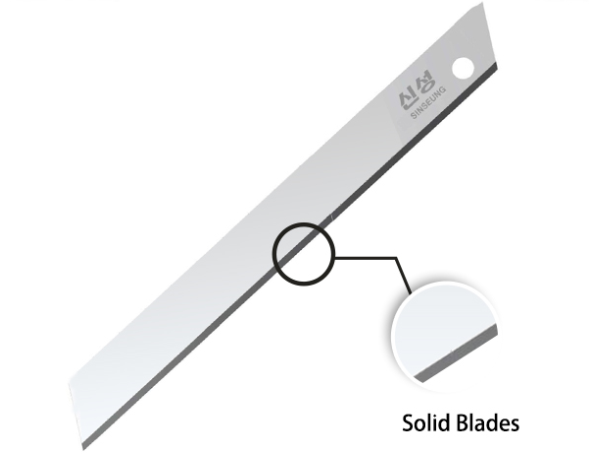

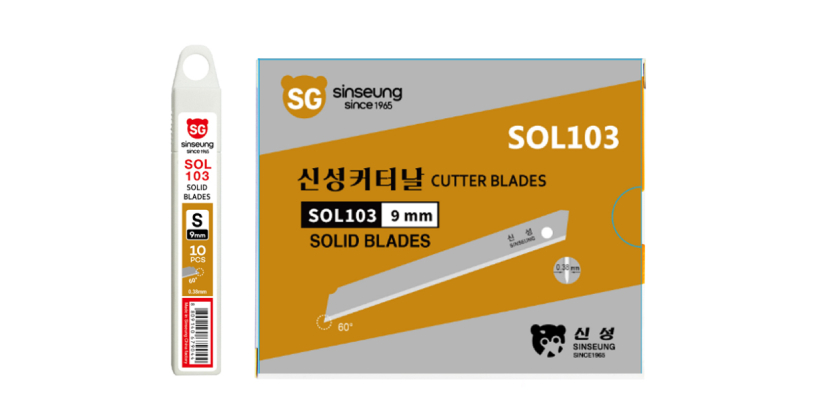

SOL103 9mm Solid Blade
1. Food processing: For cutting films, wrapping paper and food-grade tapes, effectively preventing contamination from blade fragments.
2. Light industry manufacturing: Applied to processes requiring clean and stable cutting in electronics, printing, textile and other industries.
Product Specification
Specification
|
SOL103 |
|
|
Material |
SK2 High Carbon Steel |
|
Width |
9mm |
|
Angle |
60 degrees |
|
Thickness |
0.38mm |
|
Length |
86mm |
|
Model |
Angle |
Thickness |
Width |
Length |
QTY/ |
QTY/ |
QTY/ |
QTY/ |
Specs / Carton |
Weight/ |
Carton Size |
VOL |
|
SOL103 |
60° |
0.38 |
9 |
86 |
10PCS |
100PCS |
1000PCS |
8000PCS |
10*10*10*8 |
21.93KG |
37*23.5*20.7 |
0.01799865 |
Applications
1. Food processing: For cutting films, wrapping paper and food-grade tapes, effectively preventing contamination from blade fragments.
2. Light industry manufacturing: Applied to processes requiring clean and stable cutting in electronics, printing, textile and other industries.
Feature
-
Differences from conventional snap-off blades
✅ Safety: No risk of fragment shedding. Mandatory for food and pharmaceutical applications.
✅ Durability: High overall strength, ideal for cutting thick materials with heavy force.
✅ Stability: Full blade extension available, no wobble during deep cutting for higher precision.
❌ Non-segmental design: The whole blade needs replacement once dull, leading to slightly higher cost.
